Ultra Low Light Underwater Imaging in a Compact Size
Like it’s predecessor Gates ME20 Housing system, the new ML-105 is an ultra low-light underwater imaging system, capable of operating in environments nearly absent of light. Gates ML-105 Housing is designed to push the boundaries of underwater motion imaging, revealing natural bioluminescence, moonlit reefs, luminescent marine critters (like lanterneye fish), dimly lit caves and other light challenged scenes without the aid of additional, artificial lighting. Such breakthrough imaging is enabled by the Canon ML-105 camera, capable of incredible low light performance over 4 million ISO.
The Canon ML-105 camera is a remarkable 50% smaller than the ME20. This means a considerably smaller housing system with an integrated, rear-viewable 5.2 inch Atomos Ninja monitor / recorder. And unlike the ME20, the ML-105 Housing includes Gates GCC Command / Control module, providing direct access to camera functions.
Exploring frontiers in the underwater realm, the new Gates ME20 Housing pairs Canon ultra low light technology with Gates legendary reliability.
The seasoned professional will recognize many signature features in the Gates ML-105 Housing: precision mechanical focus / iris control of any PL or Canon EF lens; durable machined aluminum and stainless construction; clean, uncomplicated, user friendly design; Gates precision ports for clear, sharp images; extensive line of accessories and custom configurations; and Seal Check Lite for housing integrity verification. Experts know that failure is not an option, so they never take a chance…. they take a Gates!
Compatible cameras:
Canon ML-105
ML-105 KEY FEATURES
Complete Camera Control
Camera side-menu/display plus Gates user-assignable Command / Control module provide unprecedented level of camera control.

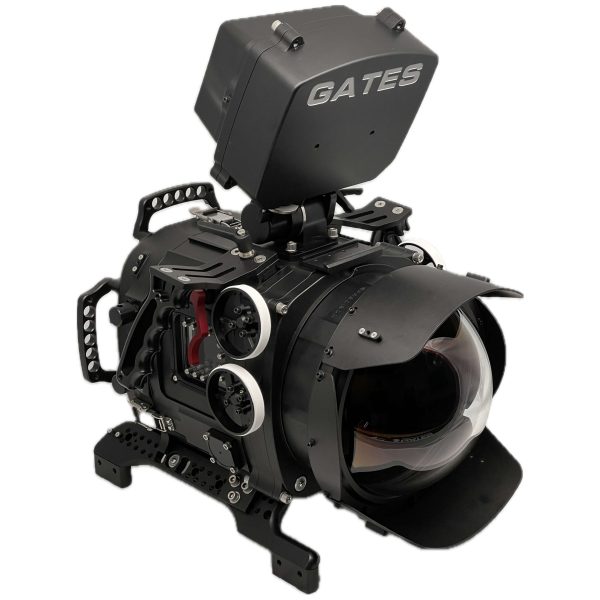

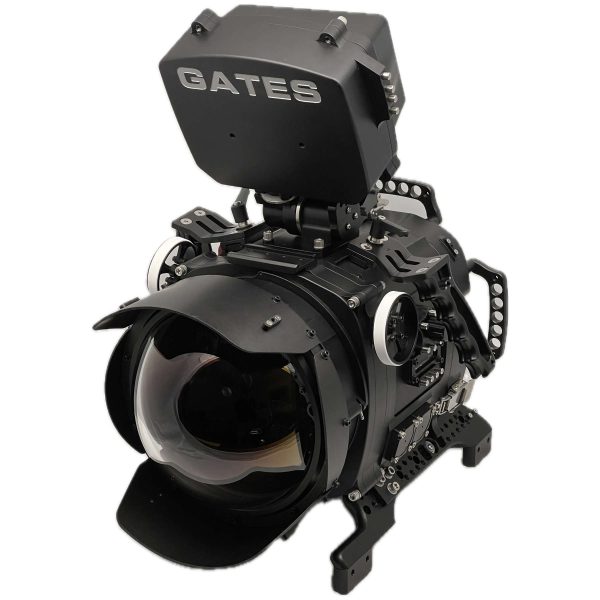

Optimal Size for Travel and Stability
PRO RAPTOR is designed to meet the demands of Natural History world travelers and Cinema / TV professionals that require steady, stable sequences.

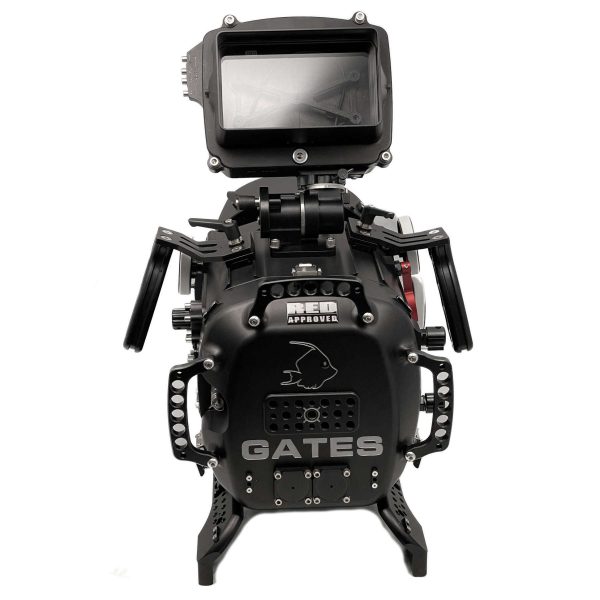

“Cable-less” RT73 External Monitor
A genuinely innovative design specifically for RED DSMC3 RED TOUCH 7.0. The RED USB-C RMI cable passes through a sealed tilt / swivel mount, and is user-replaceable.
Directed Internal Cooling
An internal fan keeps RAPTOR camera happy. It is also forward-facing, circulating air through the port area to eliminate dome fogging.
Flexible, Adaptable

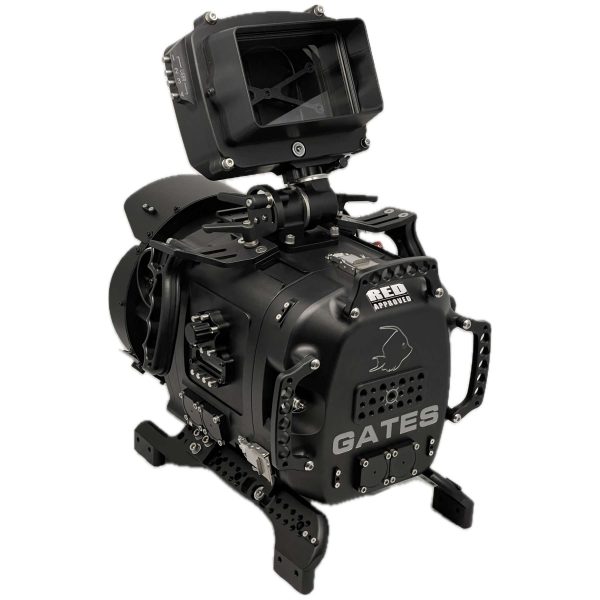

Professional Handling
Built-in handgrips make above-water handling and underwater manipulation a breeze.
Gates SDI External Monitor Options
PRO RAPTOR supports any Gates SDI-type External Monitor such as:
* EM5 ULTRA for SmallHD Ultra 5
* EM7 CINE for SmallHD Cine 7
* EM503 for SmallHD 503 Ultrabright
Details: PRO RAPTOR External Monitor Options

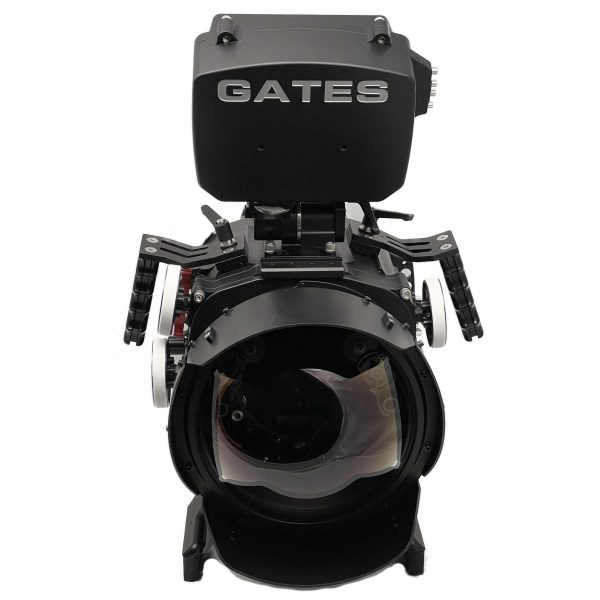

Precision Ports™
PRO RAPTOR supports the entire Gates suite of 6, 8 and 10″ dome and flat ports. AR coated glass or acrylic / Perspex options.
Surface COMMAND / CONTROL
PRO RAPTOR is ready for multiple surface tethers: SDI video, lens control, camera control and power. Both Gates MultiConn bulkhead connectors and Pass Through designs are available depending on the application.
Learn more about Gates Surface Command / Control
Fan On / Off Switch
Remote Record Trigger Input
Another Gates first: standardized 3.5mm receptacle for remote record trigger applications.
Extensive Lens Support
Nothing comes close to the range of lens support offered by Gates. RF / EF / PL / LPL and more are entirely usable in PRO RAPTOR.
Adjustable Buoyancy and Trim
Add /remove trim weights for ideal buoyancy and balance — a key to stable, fluid shots.
It’s Included
No buying piece-by-piece. PRO RAPTOR includes Seal Check Lite Rechargeable, spare kit, tool kit, Lens Gear Drives, system cabling, carry handle and more. Just add Port(s) and Port Ring(s) specific to your application to make a complete kit.
2 Year Warranty
Legendary Factory-Direct Support
Gates is synonymous with reliability and support, and only Gates offers a 2-year, renewable warranty on all housings.
SPECIFICATIONS
Controls
- Power
- Record
- Record Trigger (remote input, at fingertip)
- Record Control (physical camera button push)
- Camera control
- Complete side camera menu navigation and user buttons
- Gates COMMAND / CONTROL (GCC-RP) for DSMC3
- Lens Control
- Mechanical Lens Gear Drives –> Focus / Zoom / Iris
- GCC Iris control of Canon EF and RF lenses
Dimensions
- PRO RAPTOR Dimensional Drawing
Construction
- Machined Aluminum, Type III Hard Anodized finish
- Stainless steel hardware
Weight in Air
Variable depending on configuration.
- Complete: 42.3 lbs Camera/Batty/LCD/SPR80-200/SP80 Glass/RT73
- Transport: 20.6 lbs Housing only with Port Base
Weight in Water
- Fully adjustable to be neutral / trim with Gates trim system
Depth Rating
- 350 feet / 107 meters
Warranty
- 2 Years Renewable. Gates Warranty Details
MONITOR OPTIONS
RT73 Underwater Monitor Housing
This is what real, reliable innovation looks like: Gates *cable-less* RT73 External Monitor…
EM7 CINE Underwater Monitor Housing
Gates EM7 CINE Underwater Monitor Housing is a bespoke, glove-fit for the SmallHD CINE 7 LCD, offering a vivid 1800 nit 1900×1200 resolution display, visible even the bright daylight of shallow tropical waters…
EM5 ULTRA Underwater Monitor Housing
Gates EM5 ULTRA Underwater Monitor Housing is a tailored, glove-fit for the SmallHD ULTRA 5 LCD, with a powerful 3000 nit HD display, visible even in the harshest daylight…
EM503 Underwater Monitor Housing
Tailored to the SmallHD 503 Ultrabright LCD, the Gates EM503 Underwater Monitor Housing is a brilliant 2200 nits, visible even in harsh daylight…
Starlite External Monitor Housing
The Gates Starlite ST5 is specifically designed for the Transvideo Starlite SDI monitor / recorder (not included), a compact, smartphone-size 5.0” / 125mm color LCD.
PORT OPTIONS
The best camera in the world can’t make up for poor optics. Poor optical design and materials introduce ‘image killers’ – distortions, aberrations, degraded resolution, or vignetting. Gates family of Precision Ports are sharp and clear: the finest optics for the finest underwater images. No image killers. Professional to amateur, super wide to macro, Gates Precision Ports suit a wide range of needs, conditions and experience. Of course all ports are backed by our legendary customer support and the same standard of excellence expected of all Gates products.
DOME PORTS
SP60-6 Dome Port
The SP60-6 is a 6in / 152 mm spherical dome port that preserves field of view (FOV) underwater, and is ideally suited for wide to fisheye imaging. Anti-Reflective (AR) coated glass or optical grade Acrylic (Perspex) versions, the latter field serviceable / replaceable.
SP80 Standard (Dome) Port
The SP80 preserves field of view (FOV) underwater, and is ideally suited for wide to fisheye imaging. Medium to macro, too, when paired with a macro zoom lens. Anti-Reflective (AR) coated glass or optical grade Acrylic (Perspex) versions, the latter field serviceable / replaceable.
SP80-10 Dome Port
The SP80-10 is a 10in / 254mm spherical dome port that, like it’s smaller SP80-8 sibling preserves field of view (FOV) underwater for wide to fisheye imaging. The SP80-10 however, exhibits superior compatibility with rectilinear lenses, mitigating the soft corners classically found with dome ports in general. This particularly beneficial with certain cinema PL mount glass like Arri Master Primes and Ultra Primes.
The SP80-10 is available in Anti-Reflective (AR) coated glass only.
SP110-10 Dome Port
Designed specifically for RCH, SP110-10 is a 10in / 254mm spherical dome port that, like it’s smaller SP80-8 sibling preserves field of view (FOV) underwater for wide to fisheye imaging. The SP110-10 however, exhibits superior compatibility with rectilinear lenses, mitigating the soft corners classically found with dome ports in general. This particularly beneficial with certain cinema PL mount glass like ARRI Master Primes, Fujinami Cinema Zoom’s and Anamorphic Lenses.
The SP80-10 is available in Anti-Reflective (AR) coated glass only.
SP110-12 Dome Port
At a remarkable 12.6 in / 320 mm diameter, the SP110-12 stands alone, a new standard in underwater optics. Optical glass with anti-reflective coating, SP110-12 is designed for rectilinear cinema lenses, yet equally at home in natural history applications where split shots and close focus are key parameters. ARRI Master Primes, Fujinon Cinema Zoom’s and Anamorphic Lenses all benefit from this superior, ‘no compromises’ Dome Port.
The SP110-12 is available in Anti-Reflective (AR) coated glass only.
FLAT PORTS
FP60 Flat Port
A simple, versatile port option for macro work or lenses that don’t perform well with a dome port.
FP80 Flat Port
Due to its larger front element, the FP80 supports a variety of medium to macro lenses – including external zooms. A simple, versatile port option. Both Acrylic (Perspex) and Glass versions available.
SPECIALIZED PORT / ADAPTERS
MLA80 Macro Probe Lens Adapter
In collaboration with Venus Optics, the Gates MLA80 Probe Lens Adapter allows full submersion of the Laowa 24mm Macro Probe lens for truly unique macro imaging perspective. A long, tubular barrel with tiny lens tip can extend into the smallest of spaces, yet provide a remarkable 84° FOV, 2:1 magnification, and infinity focus. Further, the Laowa 24mm Macro covers full frame *and* larger sensors like RED Monstro from a standard Canon or Nikon mount.
Learn more about the MLA80 Macro Probe Lens Adapter
NIKONOS RS ADAPTER KIT
Designed by Nikon specifically for underwater use, the Nikonos RS suite of lenses – 13mm fisheye, 28mm, 50mm macro and 20-35mm zoom — remain underwater glass par excellence. They have a convenient bayonet mount / release system, and are fully integrated to Gates housings with both focus and iris functions mapped directly to the housing controls – a genuinely innovative design. And of course the Nikonos RS Adapter Kit comes with Gates 2 year warranty and legendary service.
The SP110-12 is available in Anti-Reflective (AR) coated glass only.
CUSTOM PORTS
Corrective Optics and Specialty Ports
Gates Precision Ports extend to custom designs for specific applications like underwater UV imaging or Corrective Optics (CO) that adapt a specific lens for underwater imaging, and eliminating distortions / aberrations. Contact Gates to discuss your particular application.
INCLUDED ACCESSORIES
Seal Check Lite Rechargeable
Gates introduced Seal Check in 2008, providing integrity and certainty, the ultimate in reliability. “Know before you go” is now rechargeable using 2x 18650 batteries for super long life.
Trim Weights / Floats
Establish perfect buoyancy and trim of PRO RAPTOR, even if you change lenses and batteries. Only with Gates.
Purosol Port Cleaner
A gentle, non-residue cleaner, a perfect match for Gates Precision Port.
Spare Kits
O-rings, tools, hardware
Travel Case
Travel Case(s) have rollers and retractable handles
Trim Weighs / Trim Floats
Perfect buoyancy / trim for any housing configuration is readily accomplished with Gates trim system.
OPTIONAL ACCESSORIES

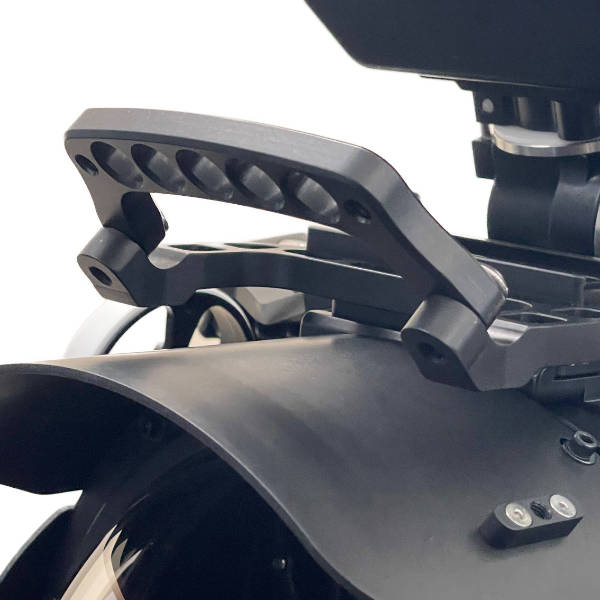

Front Carry Handle
Steady housing handling for those extra rough conditions.
Surface COMMAND / CONTROL
PRO RAPTOR is ready for multiple surface tethers: SDI video, lens control, camera control and power. Both Gates MultiConn bulkhead connectors and Pass Through designs are available depending on the application.
Learn more about Gates Surface Command / Control
External Monitor Housing Shell
Several EM options are available with PRO RAPTOR:
- RT73 for DSMC3 RED TOUCH 7.0 LCD (Recommended)
- EM5 ULTRA for SmallHD Ultra 5
- EM7 CINE for SmallHD Cine 7
- EM503 for SmallHD 503 Ultrabright
Details: PRO RAPTOR External Monitor Options
Body Cap
Need added protection for travel or harsh setup environments? This body cap bayonets into place just like SPR’s and Ports.
Shell Extension
Need something special inside? 1.6in / 40mm shell extensions make the space for it.
Underwater Titan Tube (UT2)
Surface and / or Underwater Command / Control of Astera Titan Tubes, the “the ultimate LED tube for filmmakers, TV studios and any creative person.”
Nikonos RS Lens Adapter Kit
Specifically designed for underwater, Nikonos RS lenses can be adapted to DSMC and DSMC2 systems. Focus and Iris are mapped to the existing housing controls. Quick bayonet lens change and lighter / smaller rig for travel.
Customization
Special modifications are routine. You really can have it ‘just the way you like’.
Knob Extensions
Finer control of focus and iris, even with gloves.
Water Alarm
An extra measure beyond Seal Check, the Gates Water Alarm provides both visible and audible warnings. The siren is coupled directly to the housing shell and resonates directly to the water, rendering it unmistakable to a diver.

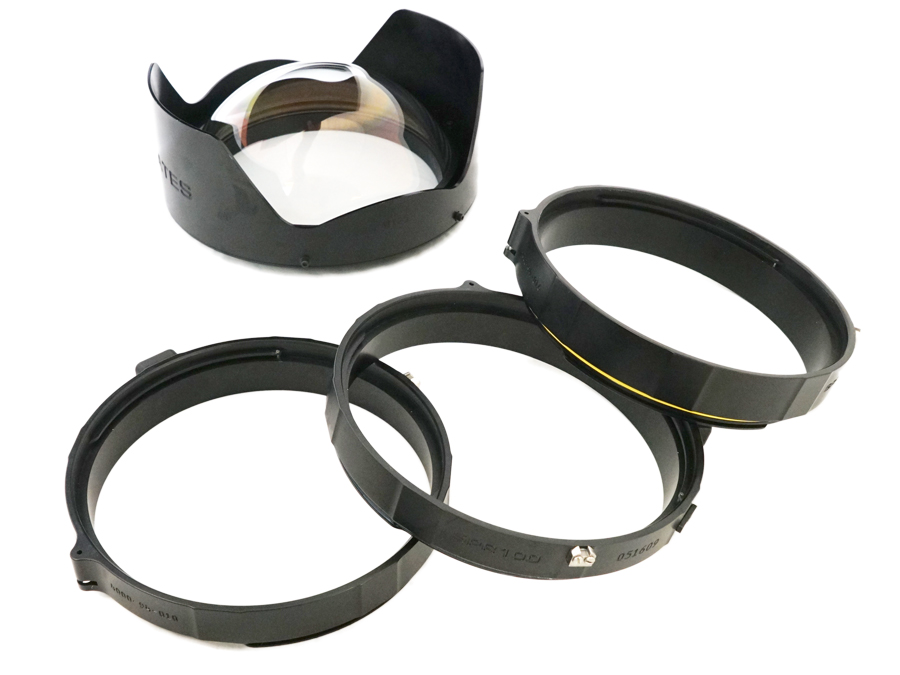

Stackable Port Rings (SPR’s)
Support for hundreds of PL, DSLR and Mirrorless lenses.
SUPPORT
General
Setup, Use and Care Guides
Port and Lens References
- GATES Lens Compatibility Reference
- MLA80 Macro Probe Lens Adapter Setup, Use and Care Guide
- Gates Recommended Lenses for Flat and Dome Ports
Surface Command / Control
- Surface Control Setup / RED CONTROL PRO – USB-C iOS devices
- Surface Control Setup / RED CONTROL PRO – Lightning iOS devices
GCC FIRMWARE UPDATE — PRO RAPTOR
Other Reference
PRO RAPTOR SUPPORTED EQUIPMENT
DSMC3 Cameras
- V-RAPTOR VV
- V-RAPTOR S35
- V-RAPTOR [X] VV
Media
- All RED supported Media
LCD DISPLAYS
- Recommended DSMC3 RED TOUCH 7.0″ with Gates RT73 ‘Cable-Less” External Monitor
- SmallHD Cine 7 with Gates EM7 CINE External Monitor|
- SmallHD Ultra 5 with Gates EM 5ULTRA External Monitor
- SmallHD 503 Ultrabright with Gates EM503 External Monitor
Surface Camera Control (optional)
RED CONTROL PRO App
Contact Gates for more details on surface command / control options for PRO RAPTOR
Batteries– Micro V-Lock Type
Gates recommends the following Micro V-Lock type batteries for use directly on V-RAPTOR camera in PRO RAPTOR base configuration.
Batteries compatible with this configuration are Micro V-Lock type with a maximum depth of 3in / 76mm.
ANTON BAUER
IDX
Batteries- Full / Mini V-Lock Type
Larger, legacy V-Lock types require two items:
— Micro V-Lock to V-Lock adapter like
RED Tactical Top Plate / Battery Adapter
— PRO RAPTOR shell extension. (PN 0255-10-519)
Batteries compatible with this configuration are limited to a max depth of 3.75in / 95mm and height of 5.75in / 146mm.
Additional shell extensions are 2.75in / 69mm. 2 shell extensions provide 8.5″ total interior depth from back of camera.
—– Complete PRO RAPTOR Battery Compatibility List —-
